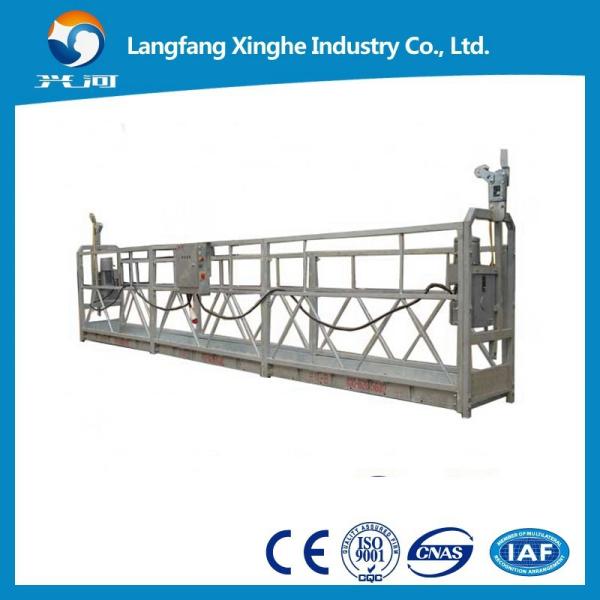

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Brand Name : Xinghe

Model Number : ZLP800

Certification : ISO CE

Place of Origin : China

MOQ : 1 set

Price : FOB Tianjin 1700~2500 USD/SET

Payment Terms : t/t l/c western union

Supply Ability : 400sets/month

Delivery Time : 7~10 days after receiving the deposit

Packaging Details : Standard exporting package by plywood case,then steel pallet for container.

Size : 3*2500mm *690mm *1180mm

Rated Loading : 800kg

Working platform finished : Hot galvanized

Max lifting height : 100m

Hoist : Ltd80

Wire rope diameter : 4*31sw-fc 8.3mm

Hoist Voltage : 380v,415v,220v 50/60 Hz

Hoist motor : 2*2.0kw

Warranty : the whole suspended platform for one year

Certificate : CE ISO

Contact Now

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Main Items : ZLP250 , ZLP500 , ZLP630, ZLP800, ZLP800 s drive(ZLP1000)

Our factory can customized for you based on the building's design:

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Product Description:

Main parts for zlp800 / zlp800 s drive (zlp1000)

Item	ZLP800	ZLP800 s drive (zlp1000)
Rated Loading	800kgs	1000kgs
Lifting Speed	~8.5m/min	~8.3m/min
*Platform size(LWH)*	5m , 6m ,7.5m ,8m or as your requirement
Suspension Mechanism	Rated exerted length of front beam	1.1m~1.5m
Suspension Mechanism	Terrain clearance of front beam	1.45m~1.75m
Hoist
Type	LTD80 a drive	LTD80 s drive
Voltage	220v, 380v ,415v 50/60 Hz 3 phase
Power	1.8kw ,2.0kw	2.2kw

Speed	1400n/min	1400n/min
Safety lock
type	LS30
Angle of tilted locking rope	3°~8°
Allowable impact force	30KN
Wire rope
Type	4*31SW+FC-φ8.3 Broken pulling force≥53500N	4*31SW+FC-φ8.6 Broken pulling force≥62500N
Constrol panel
Electric parts brand	CHNT	Schneider

Conter weight
Iron cast	Cement	Hot galvnized steel sheet with concrete

A. Bolt type

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

B type: Pin type

C: Hoist : LTD80 a drive

Hoist: LTD80 s drive

D Safety lock

E. Suspension Mechanism with counter weight

F, Control Panel

Packaging & Shipping

Hoist and safety lock are packed in one plywood case, size 610*310*340mm;

Control box/ control panel is packed in a plywood case,size 570*440*270mm;

Other components are fastened by rope and then by pallet

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Company Information

Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.

Main product include zlp630,zlp800,zlp1000, hoist and other components , with CE and ISO Certificate, our porducts has been exported to Spain, Portugal, Malaysia, Vietnam , Thailand, Philippines,Ukranie, Chile, Peru,Colombia,Honduras etc.

All products are 100% produced by ourselves factory, so the quality and the price can be ensured .

If you are in the market of Suspended platform / gondola / haning scaffolding ,hope we can cooperate in future

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Foreigner customer visit our factory

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

certificate& project

Certificate:

Some projects

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Our Services

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

FAQ

Xinghe Hot galvanized steel 2.0kw construction cleaning suspended working platform with electric winch

Contact Information:

Susan Liu

Langfang Xinghe Industry Co., Ltd

Add:Xiguangzhou Village, WenanTown, LangFang, Hebei, China (Mainland)

Mob:+8618033698582

WhatsAPP:+8615127625031

Email:export002(at)china-xinghe.com
